The Gravitational-Wave Observatory colour scheme#

In order to simplify visual identification of a specific gravitational-wave observatory (GWO) on a figure where many of them are plotted (e.g. amplitude spectral densities, or filtered strain time-series), the GWO standard colour scheme should be used:

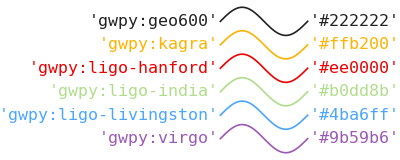

(png)

../../_images/colors-1.png

For example:

from gwpy.timeseries import TimeSeries
from gwpy.plot import Plot
h1 = TimeSeries.get("H1", 1126259457, 1126259467)
h1b = h1.bandpass(50, 250).notch(60).notch(120)
l1 = TimeSeries.get("L1", 1126259457, 1126259467)
l1b = l1.bandpass(50, 250).notch(60).notch(120)
plot = Plot(figsize=(12, 4.8))
ax = plot.add_subplot(xscale="auto-gps")
ax.plot(h1b, color="gwpy:ligo-hanford", label="LIGO-Hanford")
ax.plot(l1b, color="gwpy:ligo-livingston", label="LIGO-Livingston")
ax.set_epoch(1126259462.427)
ax.set_xlim(1126259462, 1126259462.6)
ax.set_ylim(-1e-21, 1e-21)
ax.set_ylabel("Strain noise")
ax.legend()
plot.show()

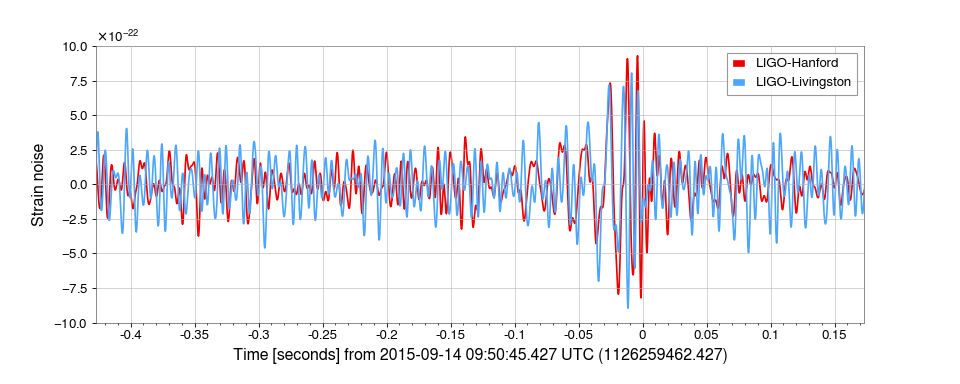

(png)

../../_images/colors-2.png

The above code was adapted from the example Filtering a TimeSeries to detect gravitational waves.

The colours can also be specified using the interferometer prefix (e.g. "H1") via the gwpy.plot.colors.GW_OBSERVATORY_COLORS object:

from matplotlib import pyplot
from gwpy.plot.colors import GW_OBSERVATORY_COLORS
fig = pyplot.figure()
ax = fig.gca()
ax.plot([1, 2, 3, 4, 5], color=GW_OBSERVATORY_COLORS["L1"])
fig.show()

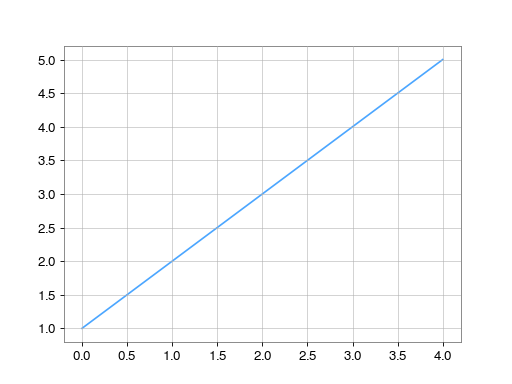

(png)

../../_images/colors-3.png

Note

The "gwpy:<>" colours will not be available until gwpy has been imported.
